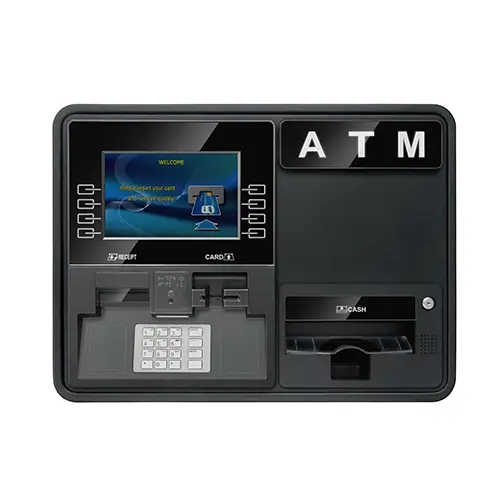

Onyx-W
Introducing the all new Onyx-W ATM. The Onyx-W can be installed securely as a Wall Mount or on a Counter Top. You’re installation options are only limited by your imagination.
Featuring a high-resolution 10.1″ LCD screen and light-up touch function keys along with 2″ receipt printer, the Onyx-W uses the same modules and software capabilities and functions found in existing Genmega ATMs.
Dispensing is handled via a 1000-note removable cassette which is secured inside it’s own internal vault system which is available with electronic locks.
Description
About the Onyx-W
Integrated Illuminated Sign
- High Visiblility LED Sign
- Attract Customers
LCD Screen
- 10.1 inch wide TFT LCD Panel
- 1280×800 Resolution
- Customizable Ad Screens
- 8 Lighted-Touch function keys
Printer
- 56mm (2″ standard)
PIN Entry Device
- 16-key alphanumeric keypad
- PCI 3.0 Certified EPP (Encrypting Pin Pad)
- LED Illumination
Communication
- 56Kbps dial-up modem
- TCP/IP Ethernet connection – Onboard SSL
CPU
- Cortex-A8 CPU (800MHz)
- DDR2 256MB SRAM memory
- 512MB Flash Memory
- Windows CE 6.0
Card Reader
- EMV (DIP Type)
ADA
- Voice Guidance
- Lighted Transaction Guidance
- Accessible Keypad Layout
Security
-
- Electronic Lock
- A-series Lock
- Cencon Lock
Cash Dispenser
- 1000 Note Removable Cassette (WCDU)
